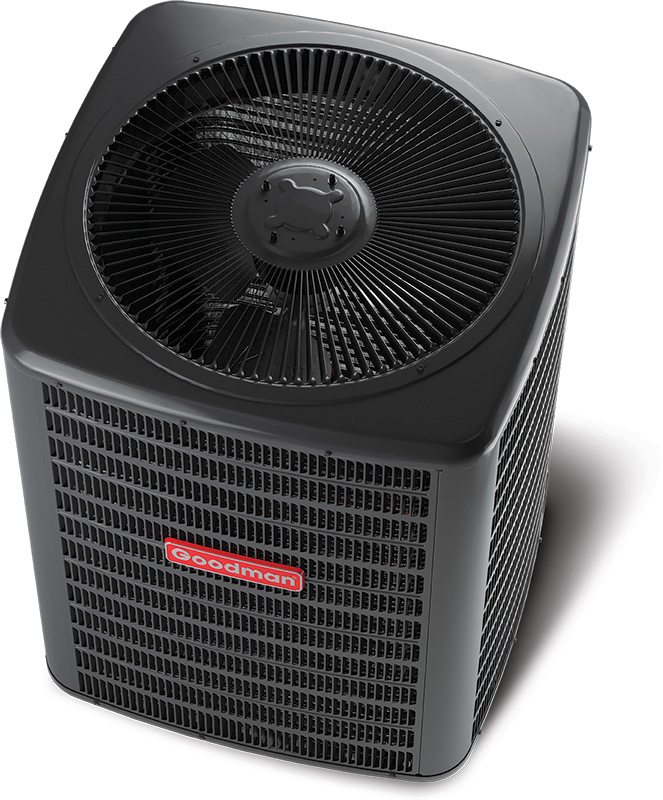

GOODMAN GSX13 CENTRAL AIR CONDITIONER
Goodman® is one of the biggest names in heating and home comfort. And this, because Goodman does honor to his name with a time-tested energy-efficient technology. All of their products are assembled in North America. No matter where you live, whether your home is small or large, Goodman has a solution to help keep your home comfortable. Here is the Goodman GSX13 central air conditioning.
MARQUE: GOODMAN
MODEL: GSX13
GOODMAN GSX13 CENTRAL AIR CONDITIONER CHARACTERISTICS
- -Energy efficient compressor
- -Single-speed condenser fan motor
- -Factory-installed bi-flow liquid-line filter drier
- -Factory-installed suction-line accumulator
- -Factory-installed high-capacity muffller
- -Service valves with sweat connections and easy access to gauge ports
- -Copper tube / enhanced aluminium fin coil
- -AHRI certified
Models specifications and capacity
| GOODMAN GSX13 CENTRAL AIR CONDITIONER TECHNICAL SPECIFICATIONS | |||||||
| GSX13018 | GSX13024 | GSX13030 | GSX13036 | GSX13042 | GSX13048 | GSX13060 | |
|---|---|---|---|---|---|---|---|
| CAPACITY BTU/HR | 18 000 | 23 000 | 30 000 | 36 000 | 42 000 | 48 000 | 60 000 |
| SEER | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| DECIBEL | 75 | 75 | 73 | 74 | 75 | 76 | 77 |
| WEIGHT (lbs) | 102 | 103 | 115 | 118 | 171 | 175 | 184 |
| COMPRESSOR | SCROLL | SCROLL | SCROLL | SCROLL | SCROLL | SCROLL | SCROLL |
| RLA | 6.7 | 7.7 | 12,8 | 14,1 | 17,9 | 19,9 | 25,0 |
| LRA | 41 | 37 | 64 | 77 | 112 | 109 | 134 |
| DIMENSIONS | |||||||
| W" | 23 | 26 | 26 | 26 | 29 | 29 | 29 |
| D" | 23 | 26 | 26 | 26 | 29 | 29 | 29 |
| H" | 25 3/4 | 27 1/2 | 27 1/2 | 27 1/2 | 36 1/4 | 36 1/4 | 40 |
